As part of the growing Opel family, the Keystone is the result of fine craftsmanship, inspired by versatility and built on more than 30 years’ of proven performance with high efficiency wood–burning fireplaces.

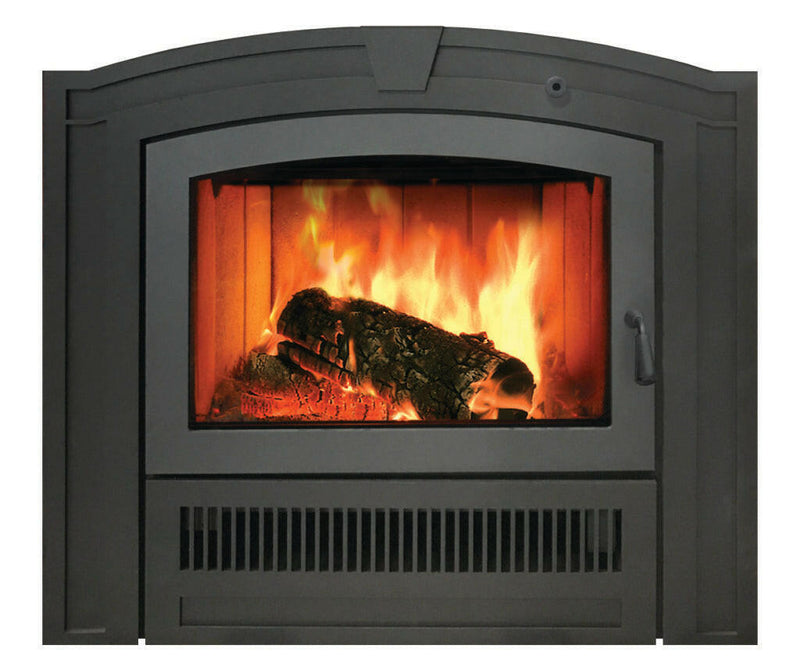

The Keystone name comes from the interchangeable keystone facing that is offered either as a semi-clean look or as a full faceplate, adding modern sophistication and design choices to any mid-sized space.

THE RSF COMFORT ADVANTAGE

Comfort is our specialty. We customize heat distribution from a wood fireplace throughout the home, including the basement. When the household temperature is tailored for a family at minimal cost and maximum efficiency, we call that the RSF Comfort Advantage.

Note: the central heating option is not available for the Pearl 3600, the Focus 3600 or Focus ST.

AVAILABLE OPTIONS

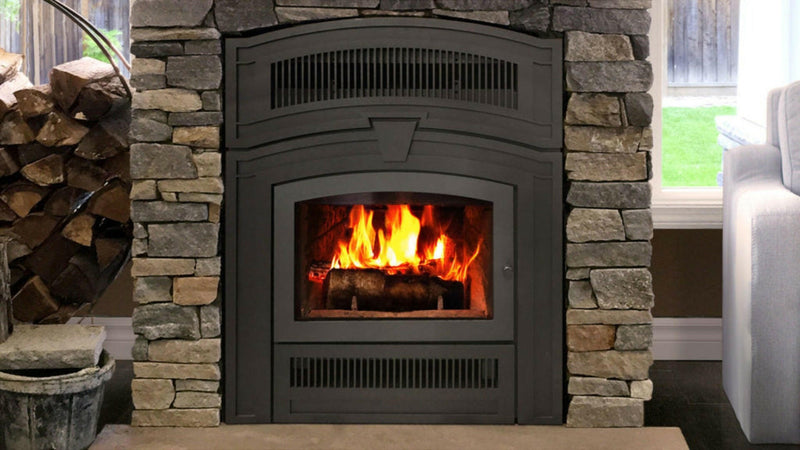

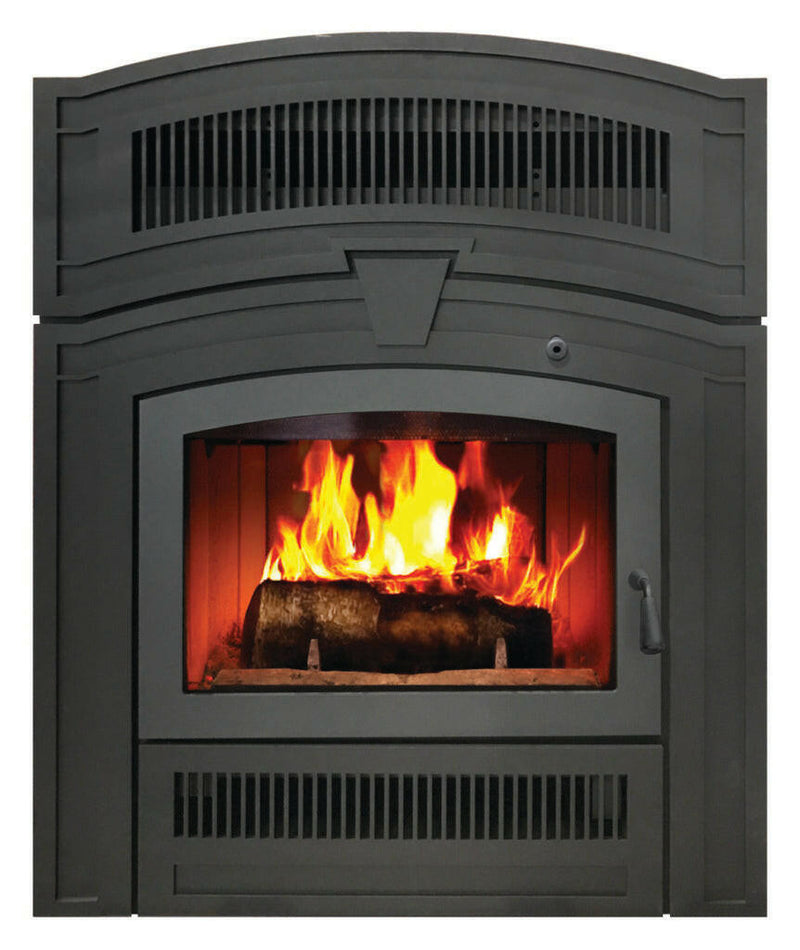

Opel+ Keystone Louver (Top)

The Top Louver for the Opel+ Keystone is a required option when the top louver is not blocked on the fireplace.

DOWNLOAD

Gravity Vent Kit

The gravity vent kit uses natural convection to distribute the heat generated by the fireplace to the same floor and/or floors above the fireplace.

DOWNLOAD

Gravity Vent Kit – Rectangular

The gravity vent kit uses natural convection to distribute the heat generated by the fireplace to the same floor and/or floors above the fireplace.

DOWNLOAD

Internal Blower

The internal blower kit will increase the circulation of heated air in the room where the fireplace is installed.

DOWNLOAD

Central Heat Blower Kit

The central heat blower kit enables the distribution of heat generated by the fireplace throughout many rooms and different floors using either dedicated ducts or the house central heating ducts.

DOWNLOAD

Central Heating Tee

This Tee allows you to have two Gravity Vents (FO-V2) on your fireplace and still be able to install the Central Heat option (FO-FDHB6-1).

DOWNLOAD

Heat Dump

The Heat Dump Kit contains all the parts necessary to circulate a moderate amount of heat from your fireplace to another room with a small fan.

DOWNLOAD

Rock Retainer Kit (Opel Keystone)

This rock retainer kit will allow you to finish your Opel fireplace with thin non-supporting facing such as tiles.

DOWNLOAD

Masonry Chimney Adapter

This adapter will attach to the liner with 3 stainless steel rivets (provided) and to the EXCEL chimney with 3 screws (provided).

Door Gasket Replacement Kit 3/4’’

This kit (FO-GRK4) includes the gasket and high temperature sealant required to change the door gasket on your fireplace.

DOWNLOAD

DOCUMENTS AND SPECS

Opel Plus Keystone

Note: The installation manual should always be used for the precise planning and accurate installation of your fireplace.

GENERAL SPECIFICATIONS
Outside Dimensions	36 7/8″ W X 52 1/4″ H X 24″ D
Shipping weight	605 lb
Glass viewing size	22 ½” W x 14 7/8″ H
Firebox Size	The observable firebox volume is 3.6  cubic feet EPA official usable firebox volume per certification testing is 2.3 cubic feet.
Firewood Length	EPA tested with 15.75″ logs; can accept up to 18″ logs
Chimney	7″ Excel
Door Finish	Black
Outside Air	4″ All RSF models come equipped to accept a 4″ outside air duct, a 5″ can also be used. All models can also be installed to operate using room air.
Mobile Home Approved	NO

PERFORMANCE
BTU Output	27,034 BTU/h Based on EPA certification testing using crib wood and calculations from CSA B415.1-10.
Estimated BTU Potential	70,000 BTU/h Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc.
Heating Capacity	1,500 to 3,000 ft2 Depends primarily on wood quality, ambient air temperature and building heat loss.
EPA Certification	0.7 g/hr
Optimal Efficiency	80% Low Heating Value (LHV) CSA B415.1-10 calculations.
EPA Average Efficiency	70% High Heating Value (HHV) CSA B415.1-10 calculations.
EPA Average CO	0.58 g/min Carbon Monoxide (CO), using data from EPA crib wood testing

CATALOGS AND BROCHURES

• RSF CATALOG

OWNER’S MANUALS – FIREPLACES

• OPEL PLUS KEYSTONE - OWNER'S MANUAL

U.S. EPA TEST REPORT

• US EPA TEST REPORT - OPEL PLUS

U.S. EPA CERTIFICATE

• EPA CERTIFICATION LETTER - OPEL PLUS

EXPLODED VIEW

• OPEL KEYSTONE - EXPLODED VIEW
