Focus ST

Vendor RSF
Call for Pricing
This is a pre order item. We will ship it when it comes in stock.

Call us : (905) 615-0880

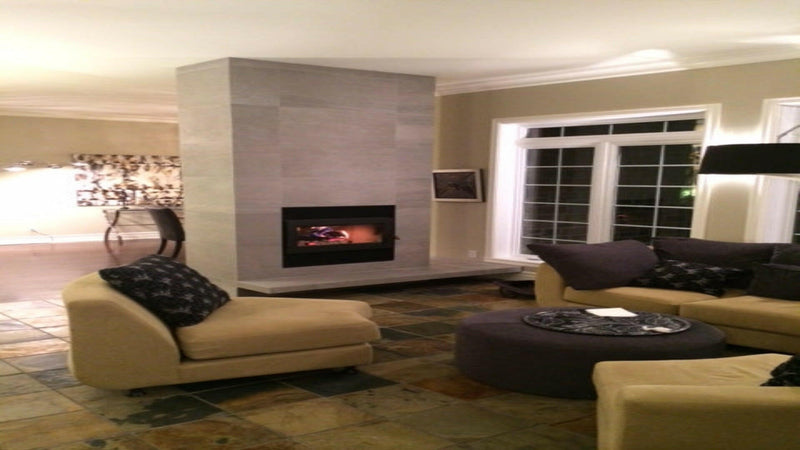

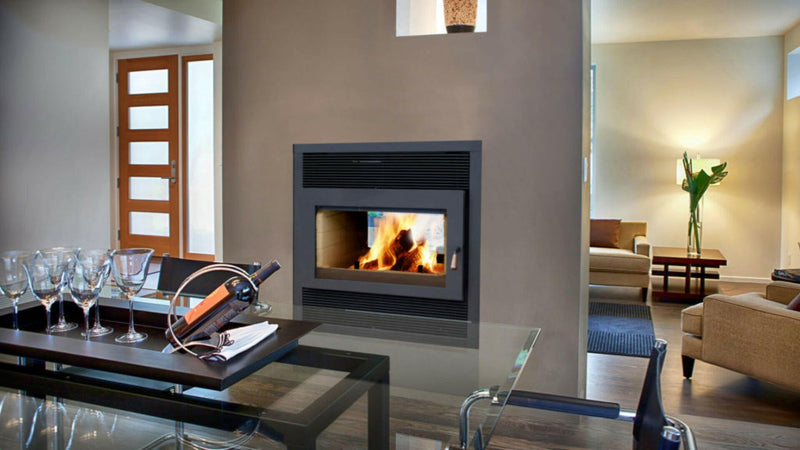

Focus ST – Contemporary, high efficiency see through fireplace

The Focus ST is a contemporary, high efficiency see through fireplace that can be enjoyed from two separate rooms. Each side includes a large glass viewing space and an operational door.

Capable of heating up to 1,000 square feet, the Focus ST is designed for ambiance and comfort.

The Focus ST is EPA exempt because of the burn rate, but has been certified by an independent lab to meet EPA standards with an emission rate of 7.5 g/hour.

  • Heats up to 1,000 square feet
  • Takes a 20” log
  • 4.1 cubic foot firebox
  • Approved for a vented Gas logset
  • Optional gravity vents
  • 30 year warranty

AVAILABLE OPTIONS

Gravity Vent Kit

The gravity vent kit uses natural convection to distribute the heat generated by the fireplace to the same floor and/or floors above the fireplace.

DOWNLOAD

Gravity Vent Kit – Rectangular

The gravity vent kit uses natural convection to distribute the heat generated by the fireplace to the same floor and/or floors above the fireplace.

DOWNLOAD

Rock retainer kit (Focus ST)

This rock retainer kit will allow you to finish your Focus ST or Oracle2 fireplace with thin non-supporting facing such as tiles. It is not necessary for brick or other self-supporting materials.

DOWNLOAD

Masonry Chimney Adapter

This adapter will attach to the liner with 3 stainless steel rivets (provided) and to the EXCEL chimney with 3 screws (provided).


Door Gasket Replacement Kit 3/4’’

This kit (FO-GRK4) includes the gasket and high temperature sealant required to change the door gasket on your fireplace.

DOWNLOAD

DOCUMENTS AND SPECS

Focus ST

Note: The installation manual should always be used for the precise planning and accurate installation of your fireplace.

GENERAL SPECIFICATIONS
Outside Dimensions 37 1/4” W X 45 1/4” H x 21 3/4” D
Shipping weight 600 lb
Glass viewing size 24 ¼” W x 13 ¼” H
Firebox Size 4,1 cubic feet

Based on overall firebox dimensions, EPA official firebox dimensions are smaller.

Firewood Length 20″
Chimney 8″ Excel
Door Finish Black
Outside Air 4″

All RSF models come equipped to accept a 4″ outside air duct, a 5″ can also be used. All models can also be installed to operate using room air.

Mobile Home Approved NO
PERFORMANCE
BTU Maximum 50,000 BTU/hr

Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc.

Heating Capacity 1000 ft2

Depends primarily on wood quality, ambient air temperature and building heat loss.

Emissions

The Focus ST can be sold in Canada and the USA since it is not regulated as per the rule definition of “fireplace” under Subpart AAA of the 2015 EPA Standards of Performance for New Residential Wood Heaters Vol. 80, No. 50.



OWNER’S MANUALS – FIREPLACES
EXPLODED VIEW
