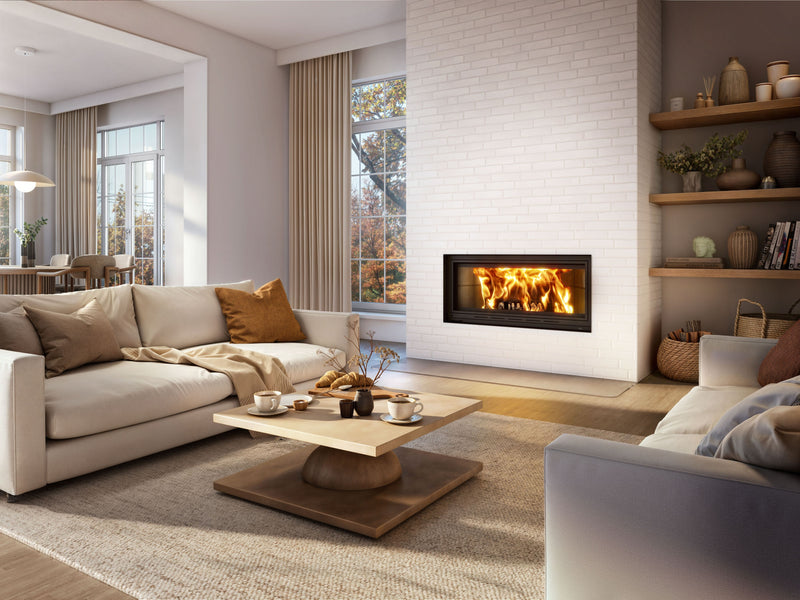

The Saint-Laurent wood fireplace stands out with its linear design and wide panoramic glass surface, offering an exceptional view of the flames. Designed to maximize the visual experience, the elongated rectangular shape of the Saint-Laurent adds a modern and elegant touch to any interior.

The highlight of this wood fireplace is its ingenious guillotine-style door and firescreen system. Designed with exceptional attention to detail and superior materials, this mechanism allows for smooth and effortless operation. The door and firescreen, equipped with a removable handle, discreetly slide under the hearth, providing easy and secure access to the fire.

Heating area : <1,000 Ft2
Efficiency
Door  Guillotine

General features

Combustion technology Non-catalytic
Fuel type Dry cordwood (16" recommended)
Recommended heating area-ft² <1,000
Overall firebox volume-ft³ 6.4
Burn rate >5 kg/h (>11 lb/h)
High-efficiency certified appliance Exempt
Maximum log length 30"
Log positioning Loading over width
Chimney diameter 8"
Flue outlet diameter 8"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Approved for a mobile home installation No
Shipping Weight 765 lb (347 lb)
Door type Guillotine, glass with steel frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 41 1/8" X 14 7/8"
Overall dimension (Height) 63 3/4"
Overall dimension (Width) 63 1/8"
Overall dimension (Depth) 31 3/4"
Door opening – dimension (Height) 15 1/2"
Door opening - dimension (Width) 44 1/2"
Firebox – dimension (Height) 23 1/4"
Firebox – dimension (Width) 31 7/8"
Firebox – dimension (Depth) 10 3/4"
Moulded refractory bricks Yes
Cast iron andirons Yes
USA standard (safety) UL 127
Canadian standard (safety) ULC-S610
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime

Approved chimney types

Manufacturiers* Brand Type Diameter
American Metal HSS AC Triple Wall 8" (20 cm)
American Metal HS AC Triple Wall 8" (20 cm)
DuraVent DuraTech Premium 2" Solid Pack 8" (20 cm)
DuraVent DuraPlus HTC 2" Solid Pack 8" (20 cm)
DuraVent DuraPlus AC Triple Wall 8" (20 cm)
Metal Fab Temp Guard 1" Solid Pack 8" (20 cm)
Olympia Chimney Champion Chimney System 1" Solid Pack 8" (20 cm)
Olympia Chimney / SBI Division Venting Ventis 1" Solid Pack 8" (20 cm)
SBI Venting Division Nexvent 1" Solid Pack 8" (20 cm)
Security Chimney S-2100 + 2" Solid Pack 8" (20 cm)
Selkirk CF Sentinel (CF) 2" Solid Pack 8" (20 cm)
Selkirk Super Pro 2100 (ALT) 2" Solid Pack 8" (20 cm)
Selkirk Super Vent 2100 (JM) 2" Solid Pack 8" (20 cm)

* Specific components may be required depending on the chimney manufacturer.

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
  Canada United-States
Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
Clearance – combustible side mantle to unit 8 1/2" 8 1/2"
Clearance – combustible top mantle to unit 64 3/4" 64 3/4"
Clearance – combustible side wall to unit 24" 24"
Clearance - from the shelf to the base of the fireplace 48" 48"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
