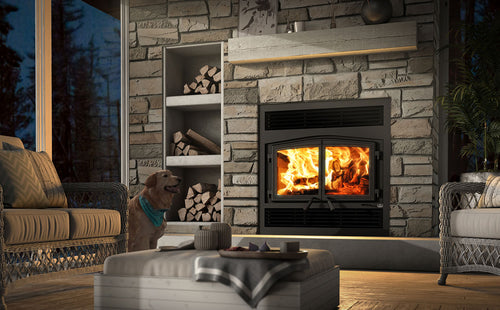

STRATFORD II WOOD FIREPLACE
Let yourself be charmed by the timeless beauty of this non-catalytic wood fireplace, which performs particularly well and meets the EPA's most restrictive emissions standards.
The Stratford II offers you more, including a 2.5 cubic foot firebox that’s easy to access through double-cast iron doors. This unit will impress you with its distinctive style and exceptional heating capacity.
| Fuel type : | Dry cordwood (16" recommended) |
| Heating area : | 750 - 2,200 Ft2 |
| Maximum heat output : | 80,000 BTU/h (23.4 kW) |
Appliance performance
| Fuel type : | Dry cordwood (16" recommended) | |
| Recommended heating area-ft² : | 750 - 2,200 | |
| Overall firebox volume-ft³ : | 2.5 | |
| EPA loading volume-ft³ : | 1.94 | |
| Maximum burn time : | 8 h | |
| Maximum heat output-dry cordwood : | 80,000 BTU/h (23.4 kW) | |
| Overall heat output rate < : | 12,700 BTU/h (3.72 kW) to 60,700 BTU/h (17.79 kW) | |
| Average overall efficiency (dry cordwood) : | 64% (HHV) | 68% (LHV) |
| Optimum overall efficiency : | 70% | |
| Optimum heat transfer efficiency : | 68% | |
| Average particulate emissions rate : | 1.2 g/h | |
| Average CO : | 98 g/h | |
Guides
Stratford II wood fireplace install & owner's manual(PDF - 8.6 Mo)
Stratford II dimensions(PDF - 1.4 Mo)
Stratford II wood fireplace quick install reference guide(PDF - 0.6 Mo)
Installation instructions for faceplates OA10255 and OA10256(PDF - 0.5 Mo)
