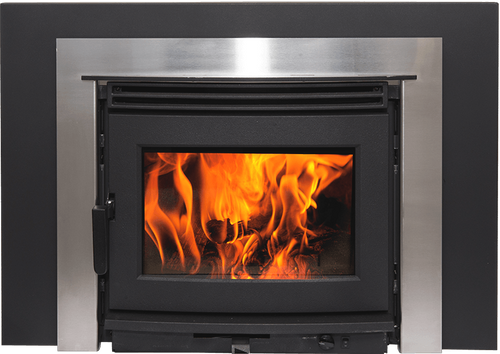

Neo 1.6 Insert LE
FOR HEATING MEDIUM SPACES
Make your smaller existing masonry fireplace a significant source of wood heat with the contemporary style of the Neo 1.6 Insert LE. Built with heavy-gauge steel, this wood insert features our industry-leading secondary combustion system, our unique high capacity stainless steel baffle and advanced heat exchanger technology for exceptional clean-burning, efficient performance.
TECHNICAL INFORMATION
- 56,000 BTU Cord Wood
- 23,200 BTU EPA Test Fuel
- Efficiency (HHV) 72%
- Emissions 1.9 gm/hr
- Log Size (recommended) 16"
- Log Size (max) 17 "
- Firebox Size 1.6 cu.ft.
- Glass Viewing Area 147 sq.in.
- Weight 285 lbs.
STANDARD FEATURES
- EPA 2020 Certified
- Reliable, Durable Catalytic-Free Technology
- Airwash Technology for clear, clean glass
- Floating firebox for extended stove life
- 304 Stainless Steel Baffle, insulation cover, rails and flame shield
- High-tech multi-port combustion air injection system
- Single-Lever Air Control
- Rich metallic black finish
- High capacity baffle system
- Removable Cast-Iron Flue Collar
- Integrated Heat Exchanger
- Inside and outside combustion air capable
- East-West fuel loading
