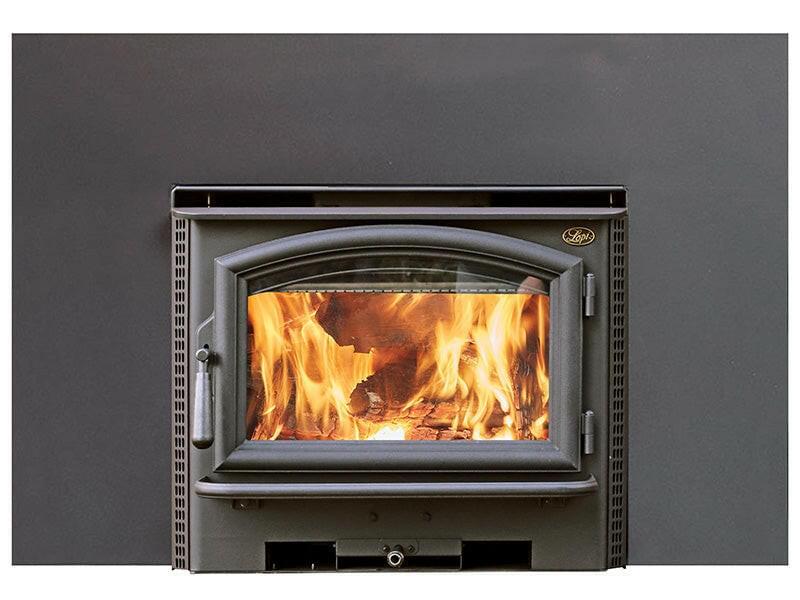

Answer NexGen-Fyre™ Insert

Innovations

• HOW TO USE YOUR MOISTURE METER
• UNDERSTANDING YOUR WOOD INSERT
• GREENSTART™
• NEXGEN-FYRE™
• CORD WOOD VS. CRIB WOOD

Specifications

• Emissions: 2.0 Grams Per Hour (CORD WOOD)
• Heating Capacity:* Up to 1,200 Square Feet
• EPA Tested BTUs: 12,129 to 59,527 (CORD WOOD)
• “Real World BTUs:”** See Below
• Maximum Burn Time: Up to 8 Hours
• Firebox Size: 1.5 Cubic Feet
• Maximum Log Size: 18”
• Weight: 285 Pounds
• Construction: 1/4” to 3/16” Steel Plate
• LHV Overall Efficiency:*** Up t0 78%
• HHV Overall Efficiency:*** Up t0 72%
• Glass Viewing Area: Ceramic Glass, 15-1/4” W x 9-1/4” H, 135 Sq. In.
  * Heating capacity may vary depending on degree of home insulation, floor plan and ambient temperature zone
  of the area you live.
  ** EPA tests to determine BTU output are achieved with a single load of wood at each burn rate. At home, you are likely
  to add more wood to your insert to maintain your desired comfort level. By the simple process of loading your fireplace
  insert with additional wood, you could achieve up to a 20% higher heat output than established during EPA testing.
  *** Overall efficiency as tested using B-415.1 using Cord Wood. LHV = Low Heat Value, HHV = High Heat Value.

Documents

• Single Page Flyer
• Brochure
• Owner’s Manual
• Front Blower Installation
• Vent Kit Instructions – Wood Masonry Chimney Reline Kit
• Vent Kit Instructions – Wood ZC Chimney Reline Kit
• Fireplace Insert Installation Worksheet
